Description du produit

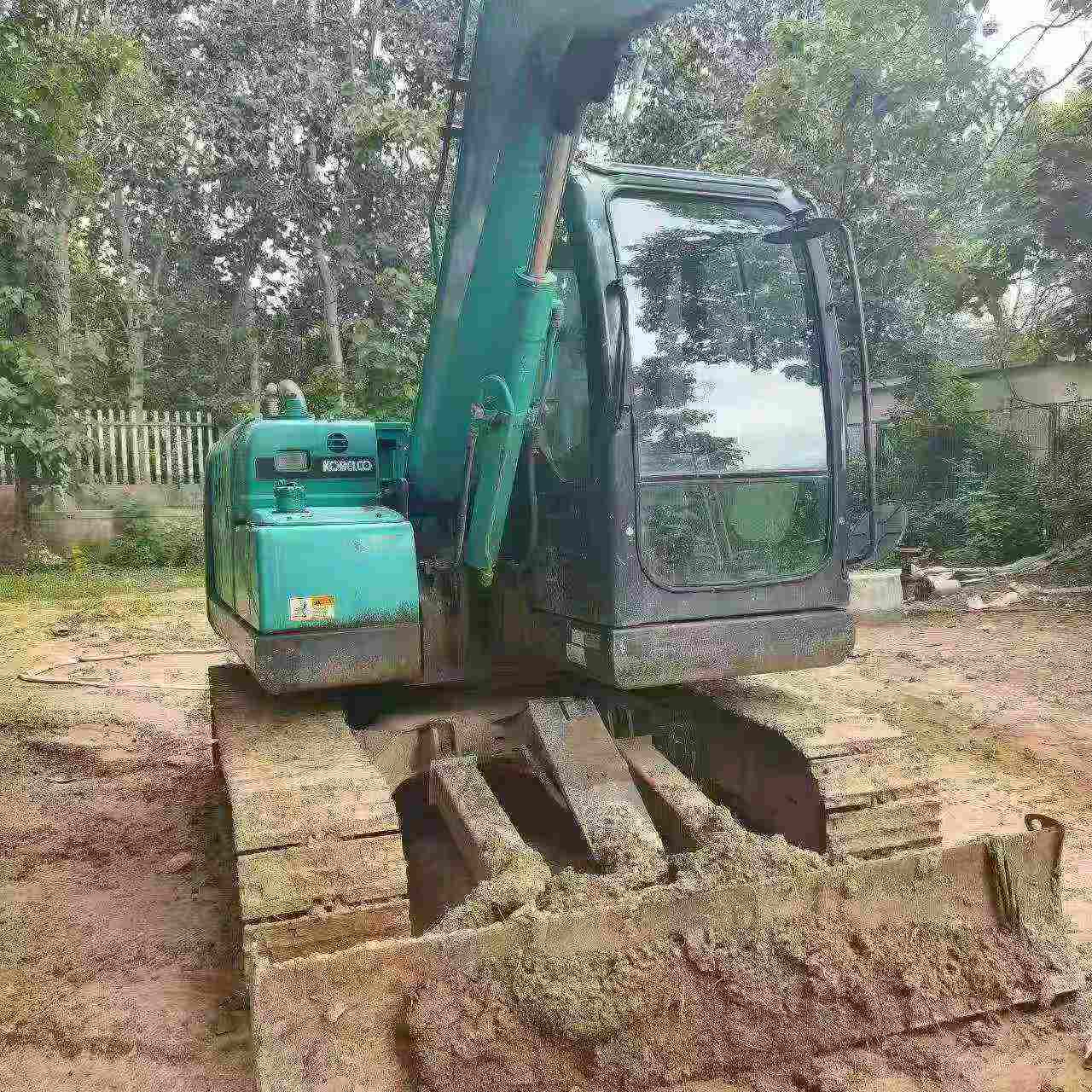

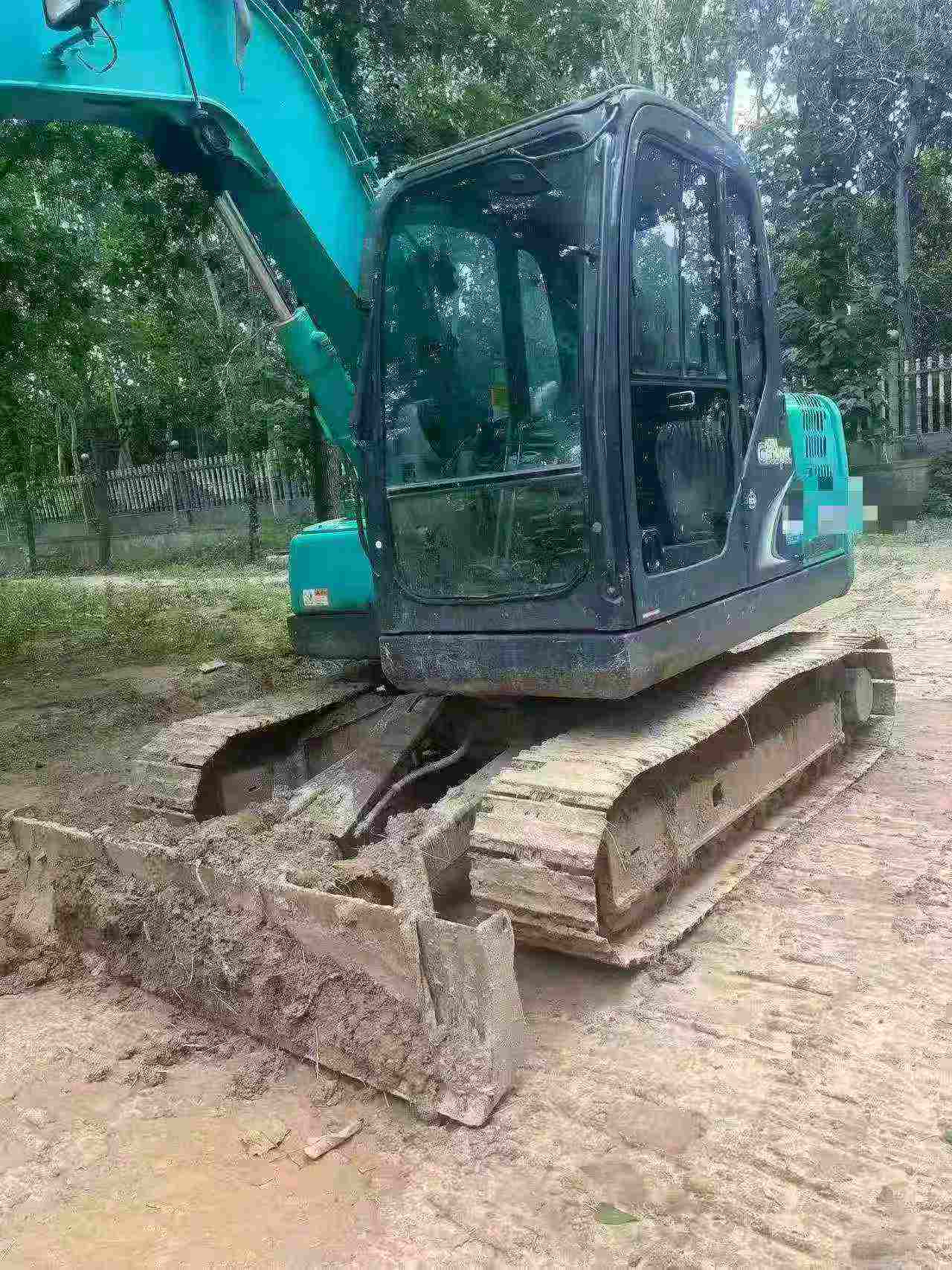

Sept années de quarts de travail éprouvants et de cycles d'excavation intenses ont le don de séparer les machines qui ne font que fonctionner de celles qui sont faites pour durer. Cette Kobelco SK75 de 2019 se range résolument dans le second camp.
Basée dans le Zhejiang, en Chine, cette excavatrice de la classe des 7 tonnes possède les références qui ont fait de la série SK un incontournable des chantiers du monde entier :

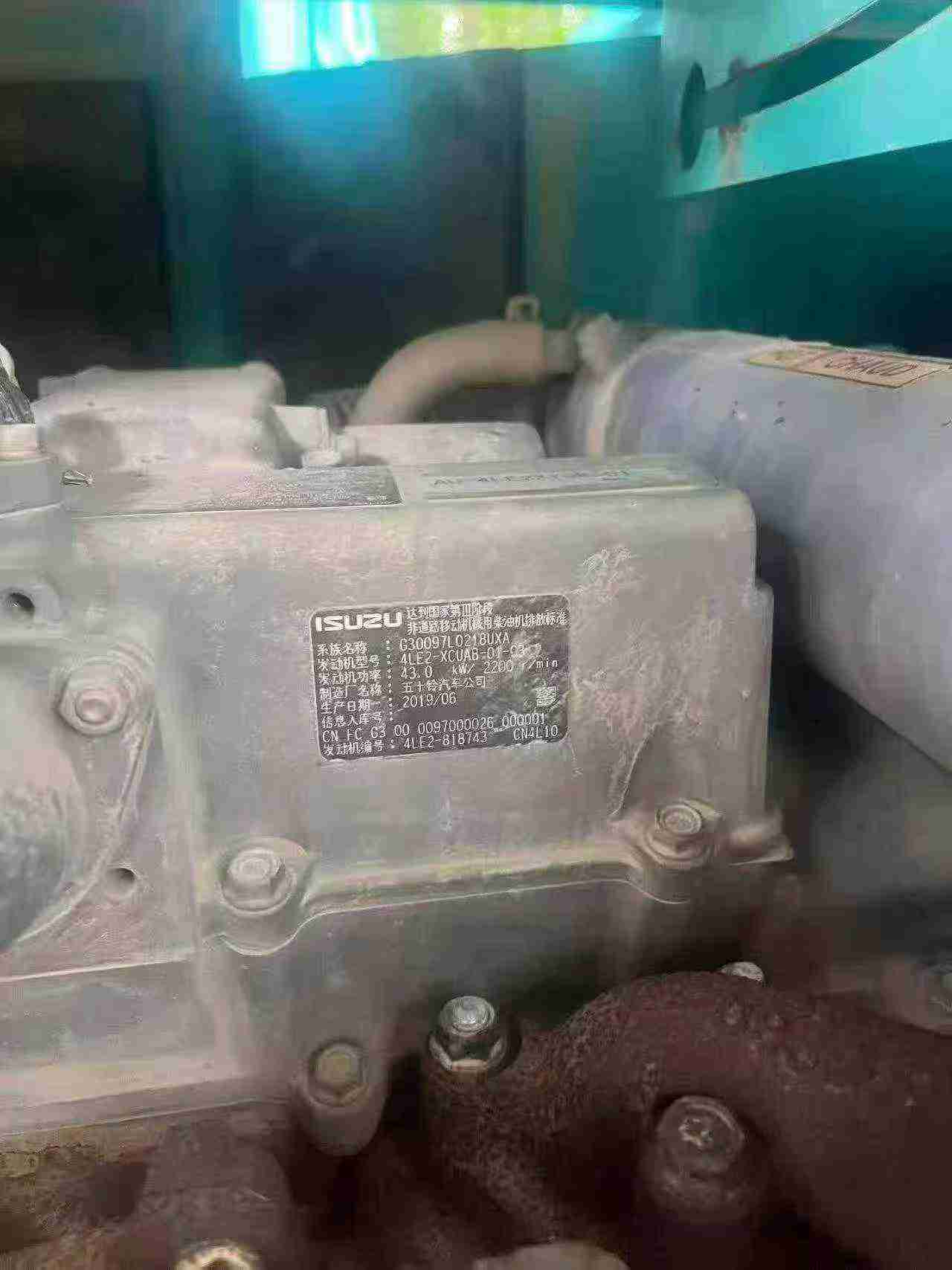

- Moteur diesel quatre cylindres ISUZU AU4LE2X, refroidi par eau, d'une puissance nominale de 41 kW / 2 200 tr/min

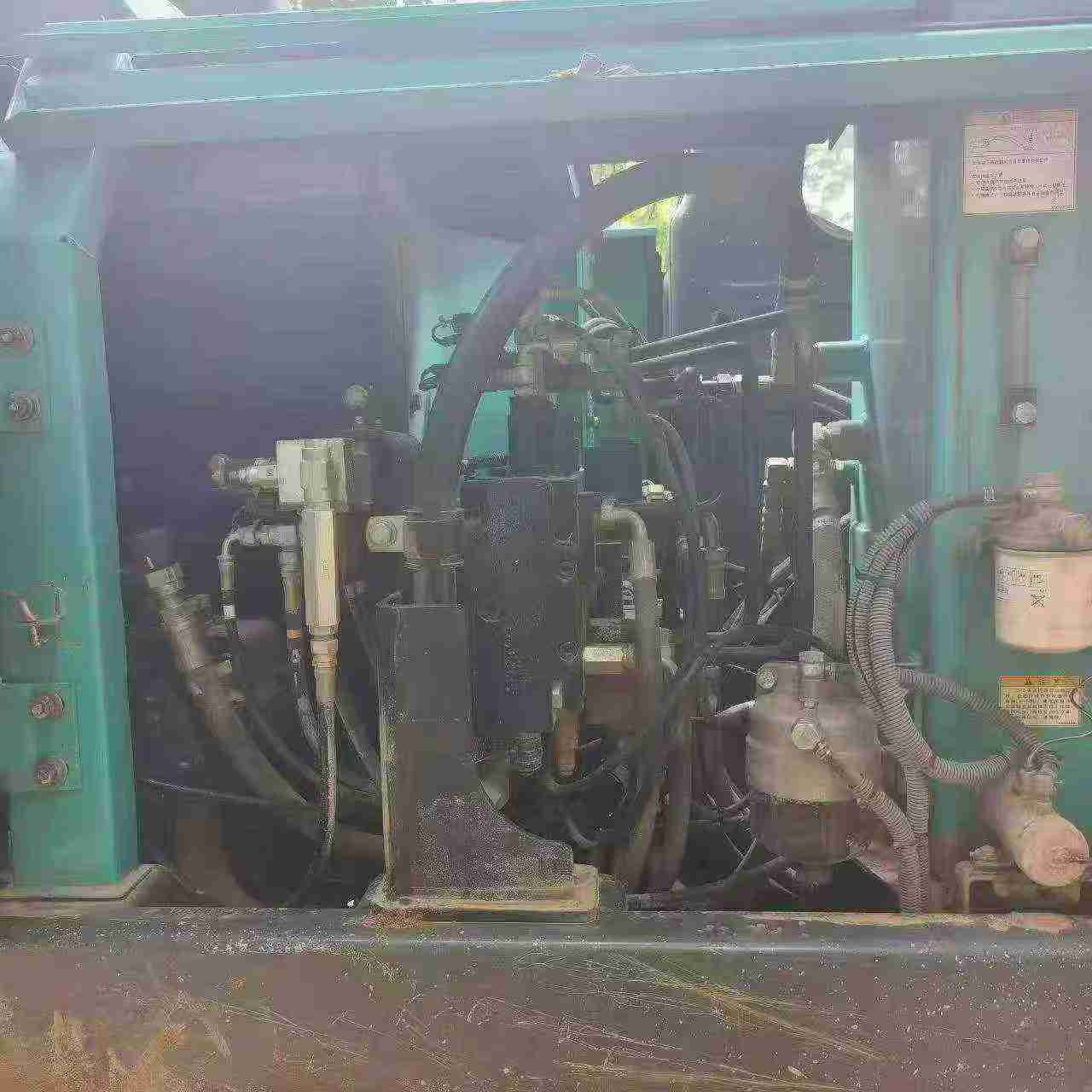

- Double pompe à pistons axiaux à cylindrée variable délivrant une pression de travail de 29,4 MPa
- Profondeur d'excavation maximale de 4 160 mm et rayon d'excavation de 6 460 mm
- Vitesses de déplacement doubles (2,8 / 5,3 km/h) pour un contrôle précis et un repositionnement rapide
- Réservoir de carburant de 120 L et réservoir hydraulique de 72 L pour un fonctionnement sur un quart de travail complet
Un cheval de labour éprouvé n'a pas besoin d'un argumentaire de vente ; il a besoin d'un palmarès. Cette SK75 en a un.
Notes on localization choices: - **Numeric conventions** converted to French formatting: comma for decimals (`29,4 MPa`, `2,8 / 5,3`), non-breaking spaces as thousands separators (`4 160 mm`), and `rpm` → `tr/min`. - **"backhoe"** rendered as *excavatrice* — the standard term in European French construction specs. - **"workhorse"** kept the draft-animal metaphor with *cheval de labour*, which carries the same "reliable hard worker" connotation in French.| Spécifications | Valeur |
|---|---|
| No. | 1122744 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
