Description du produit

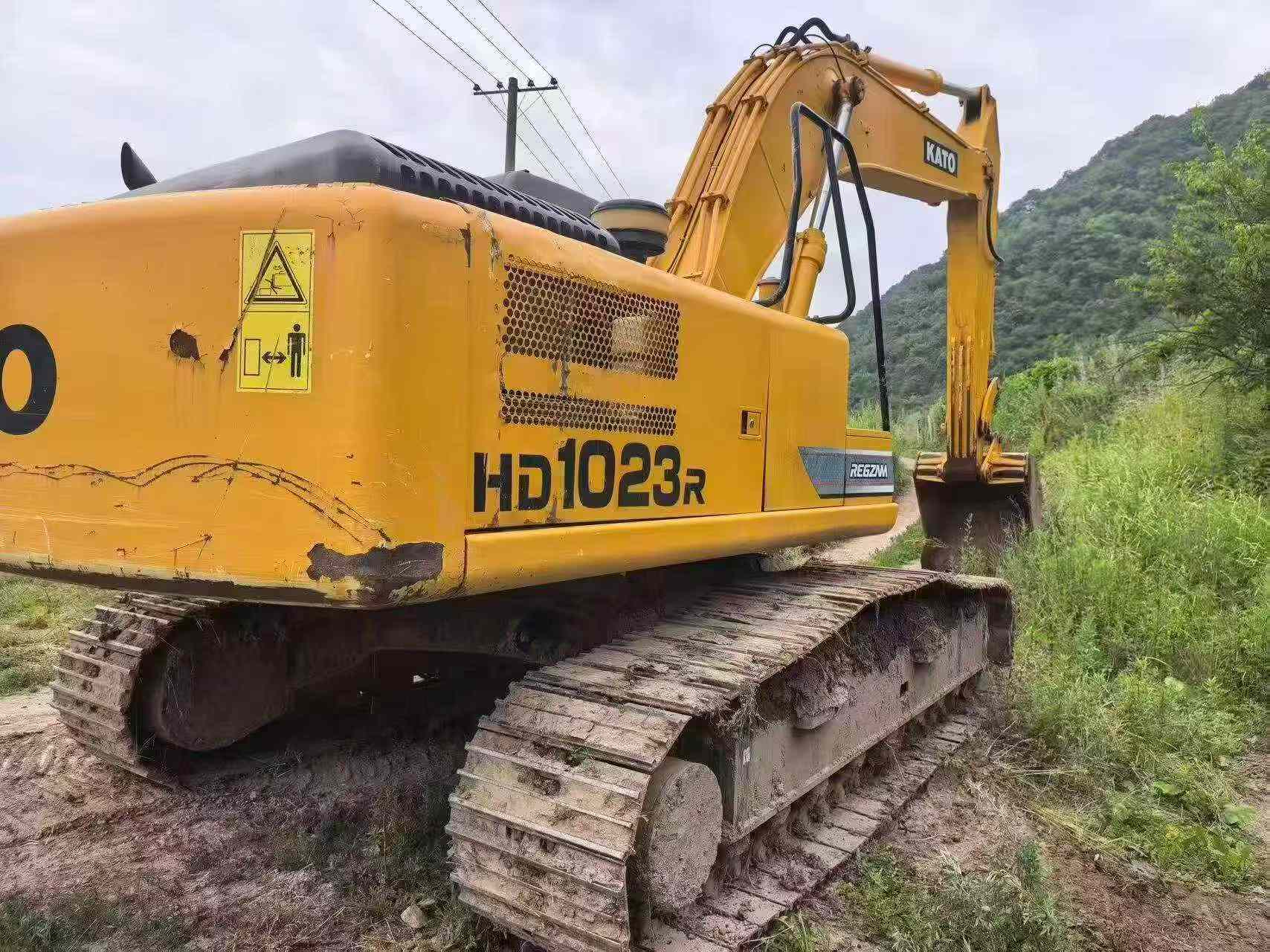

Découvrez la fiabilité et les performances robustes de la Kato HD1023R 2015, disponible à l'achat dans le Zhejiang, en Chine. Cette machine lourde d'occasion témoigne de l'engagement de Kato envers l'excellence technique, conçue pour accomplir avec facilité une grande variété de tâches industrielles et de construction. Le modèle HD1023R est reconnu pour sa durabilité et son efficacité, en faisant un atout précieux pour tout projet nécessitant des machines puissantes et polyvalentes.
- Année : 2015
- Marque : Kato
- Modèle : HD1023R
- Localisation : Zhejiang, Chine
| Spécifications | Valeur |
|---|---|
| No. | 1102314 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 24500 |
| Bucket capacity (m³) | 1.0/1.1 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

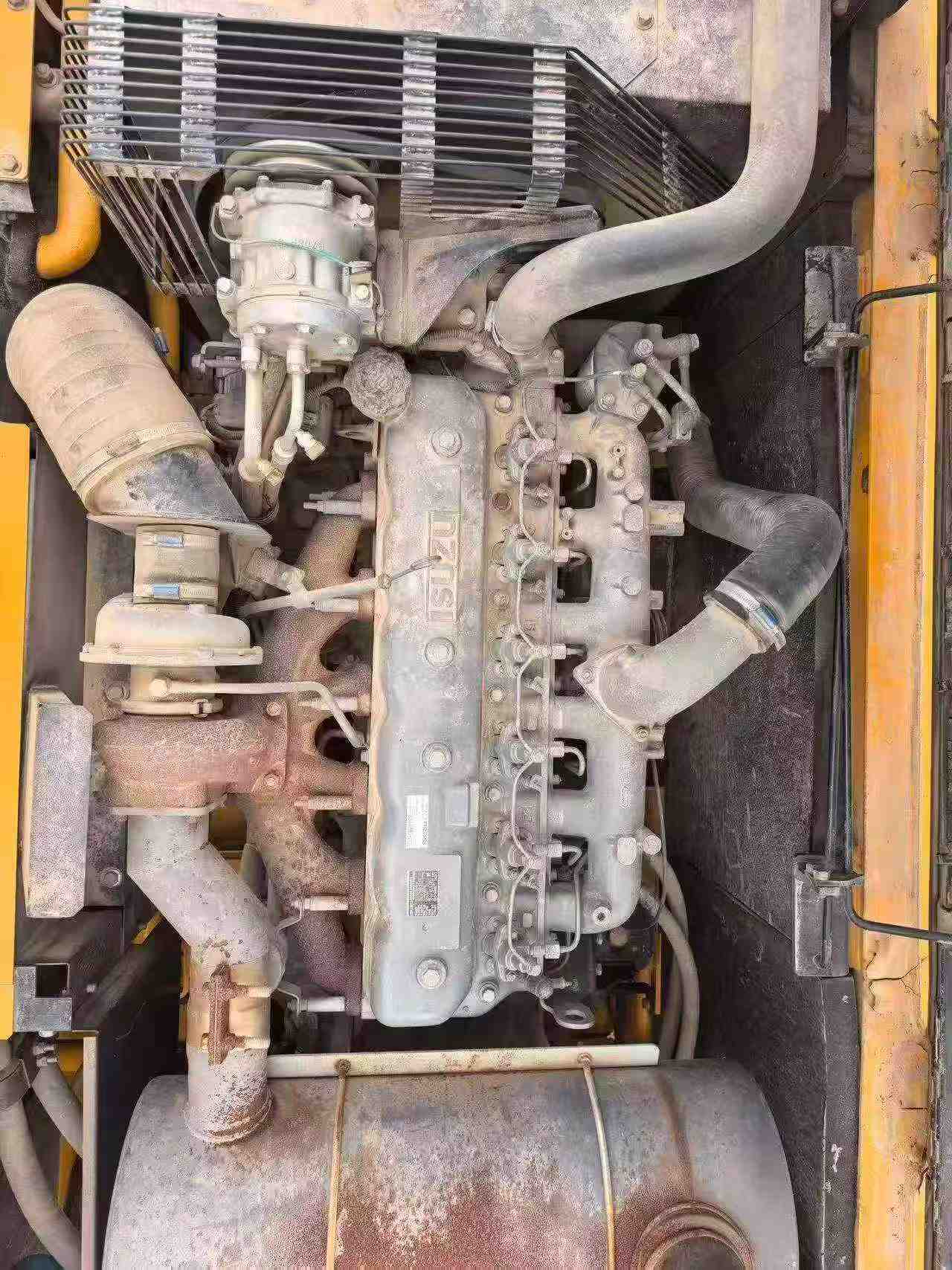

| Engine type | Isuzu 6BG1 |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Maximum torque (N.m/rpm) | 637Nm/1800 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | 4 cycle intercooler and turbocharged engine; Direct injection type |
| Ground specific pressure (Kpa) | 51/44 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | Standard 167/ High power 174 |
| Rod digging force (kN) | Standard 120/ High power 126 |
| Maximum tractive force (kN) | 186.3 |
| Travel speed (km/h) | 5.5/3.6 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Fixed capacity piston motor with reverse prevention valve and reducer |
| Type of walking hydraulic motor | Variable capacity piston motor with reducers on both sides |
| Maximum flow of main pump (l/min) | 2 x 247 |
| Traveling Hydraulic Circuit (Mpa) | 32.9 |
| Main pump type | Variable capacity piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130 x 1155 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 1680 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1370 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 165 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 290 |
| Total transport length (mm) | 9970 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3120 (to top of boom) |
| Full cab height (mm) | 2940 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3880 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600/700 |
| Total track width (mm) | 2990/3090 |
| Maximum digging radius (mm) | 10350 |
| Maximum digging depth (mm) | 7010 |
| Maximum excavation height (mm) | 10060 |
| Maximum unloading height (mm) | 6990 |
| Maximum vertical digging depth (mm) | 6250 |
