Description du produit

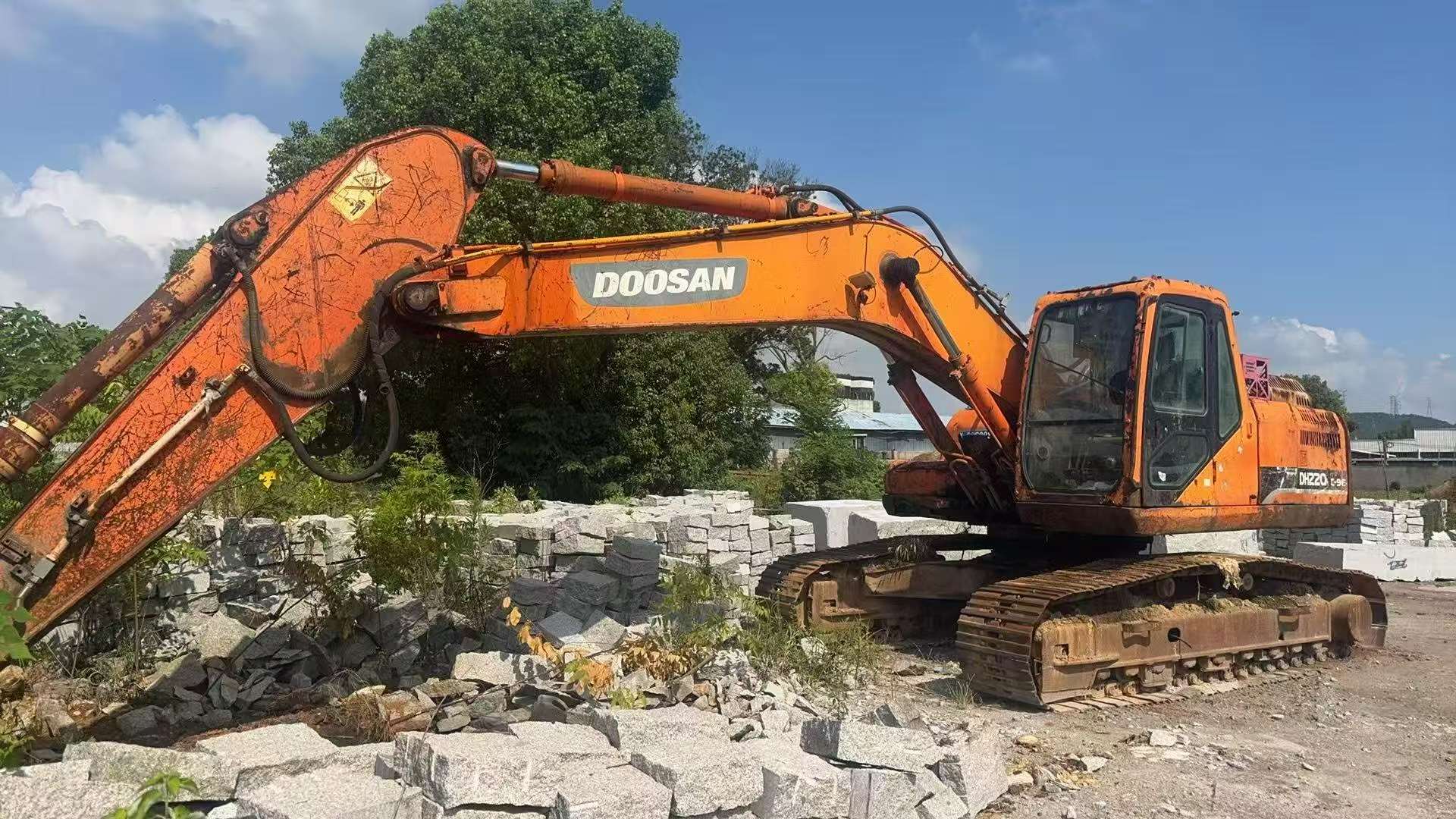

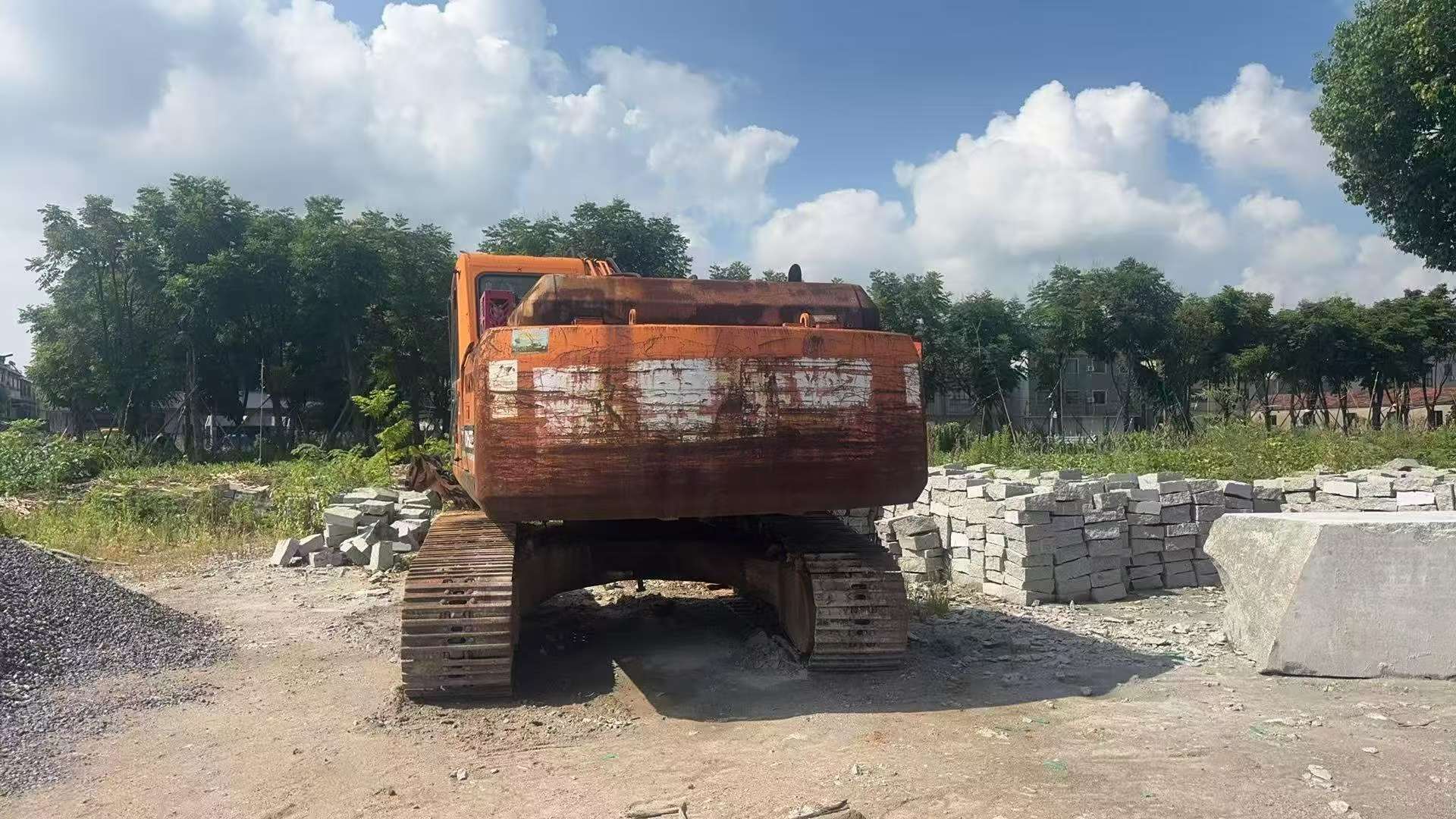

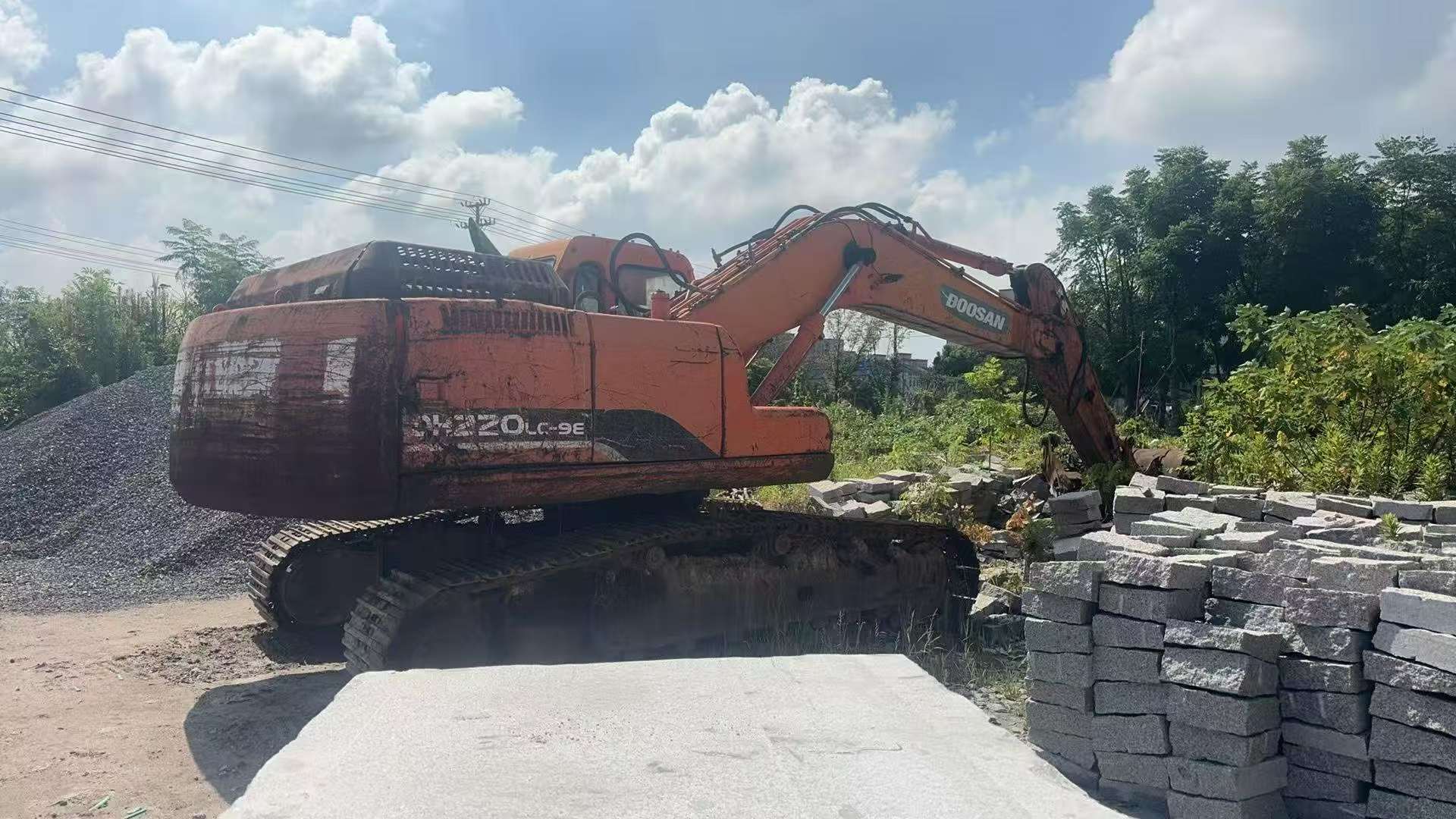

Découvrez la fiabilité et l'efficacité de l'excavatrice Doosan DH220-9E de 2020, disponible à l'achat immédiat dans la province du Zhejiang, en Chine. Cette machine robuste, équipée d'un brise-roche hydraulique, est proposée à un prix compétitif de peu plus de 60 000 USD, ce qui en fait un excellent investissement pour les projets de construction et d'excavation. Reconnue pour sa durabilité et ses performances, le modèle DH220-9E offre une force de creusement puissante et une efficacité énergétique améliorée, garantissant des opérations rentables. Idéale pour une grande variété de tâches lourdes, cette excavatrice est prête à répondre aux exigences de votre prochain chantier.
- Année : 2020
- Marque : Doosan
- Modèle : DH220-9E
- Localisation : Zhejiang, Chine

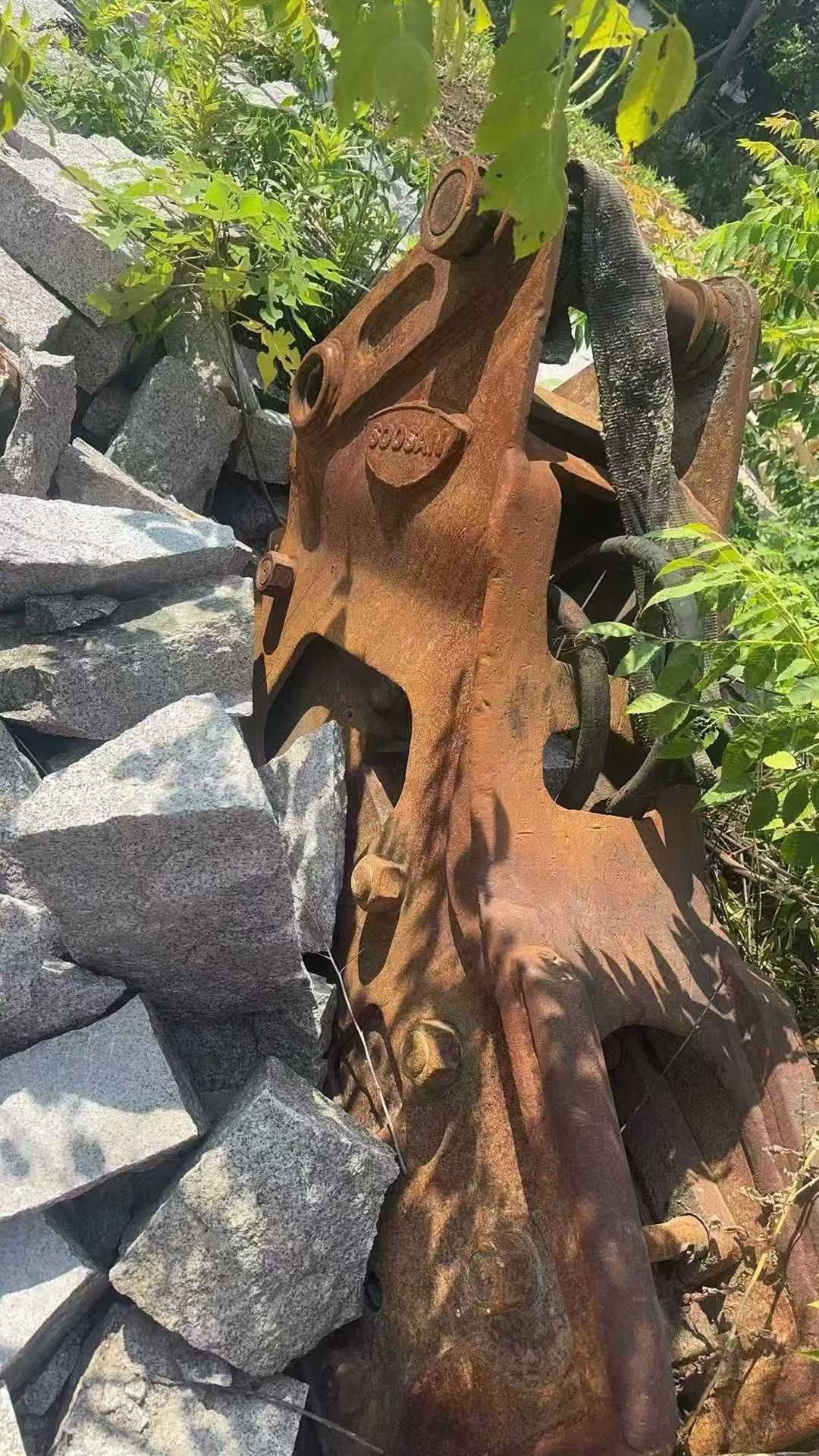

- Équipée d'un brise-roche hydraulique
| Spécifications | Valeur |
|---|---|
| No. | 1123515 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22000 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

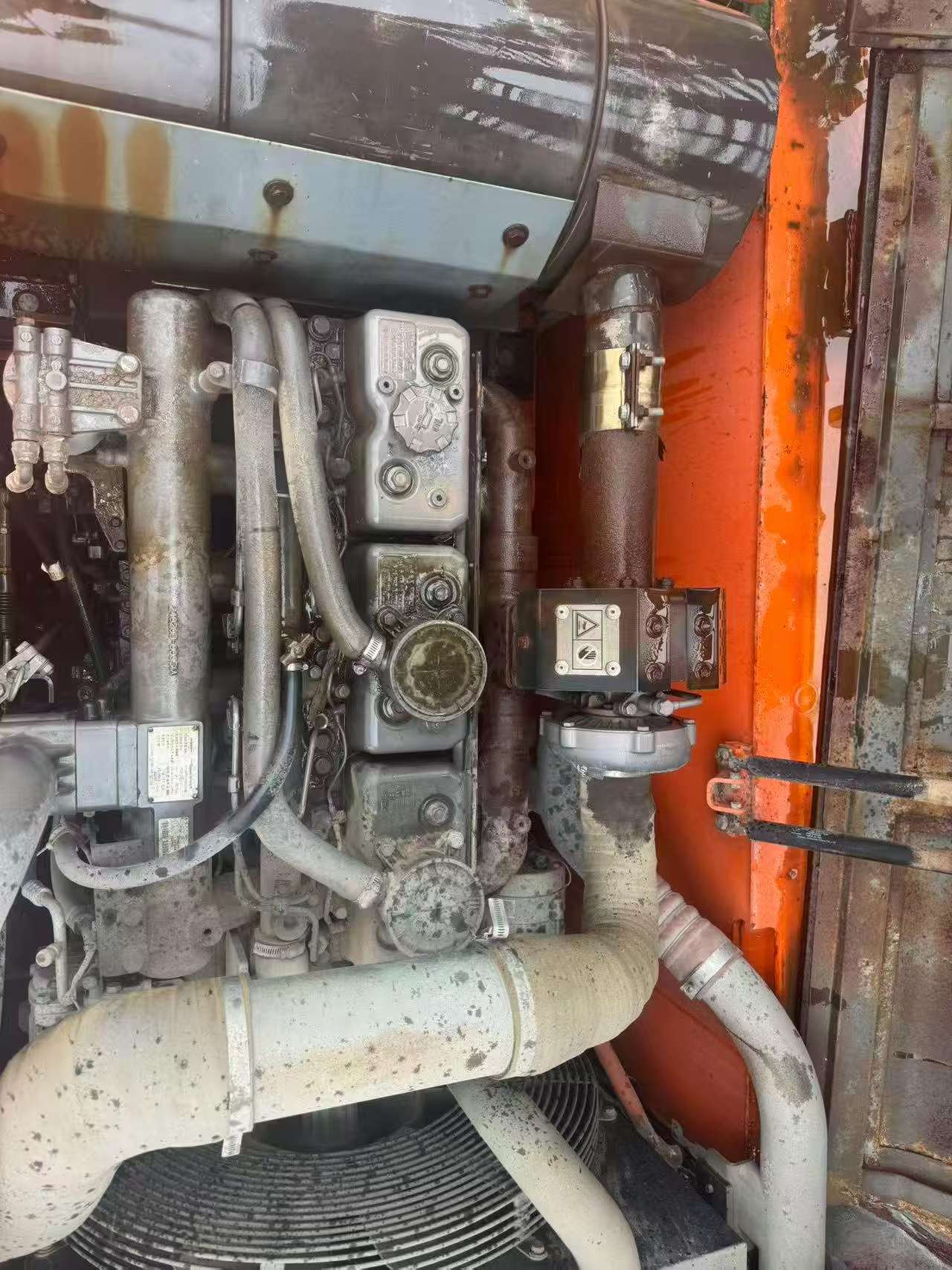

| Engine type | Doosan DB58TIS |
| Rated power (kw/rpm) | 110/1950 |
| Cylinder diameter × stroke (mm) | 111 x 139 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.07 |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Pilot pump flow (L/min) | 2 x 212 |
| Fuel Tank (L) | 310 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 42 |
| Hydraulic System (L) | 135 |
| Total transport length (mm) | 9645 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3025 |
| Full cab height (mm) | 3025 |
| Counterweight ground clearance (mm) | 1105 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3685 |
| Back end turning radius (mm) | 2840 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 4440 |
| Maximum digging radius (mm) | 9965 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5980 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 5885 |
